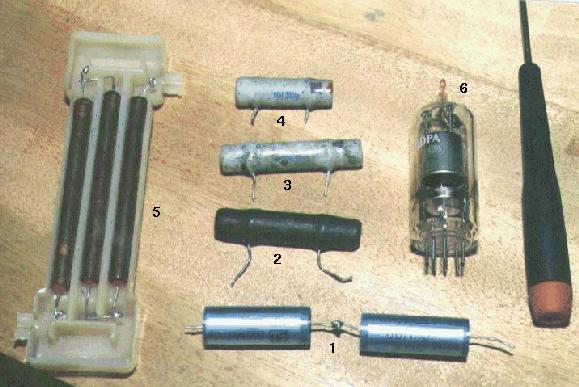

1: two caps, 11.5nF/2kV each, from TV (protection-circuit for the
     flyback switching transistor)
2-4: caps from TV's around the flyback stage, some 100pF/ 6-7kV.
  5: This was a discrete cascade from a russian portable TV. You see
     three rectifier rods for around 10kV; the two caps now are in my
  6: Rectifier valve (ca. 20kV) from old b/w TV (1950s?). The anode
     contact is seperately at the top.
